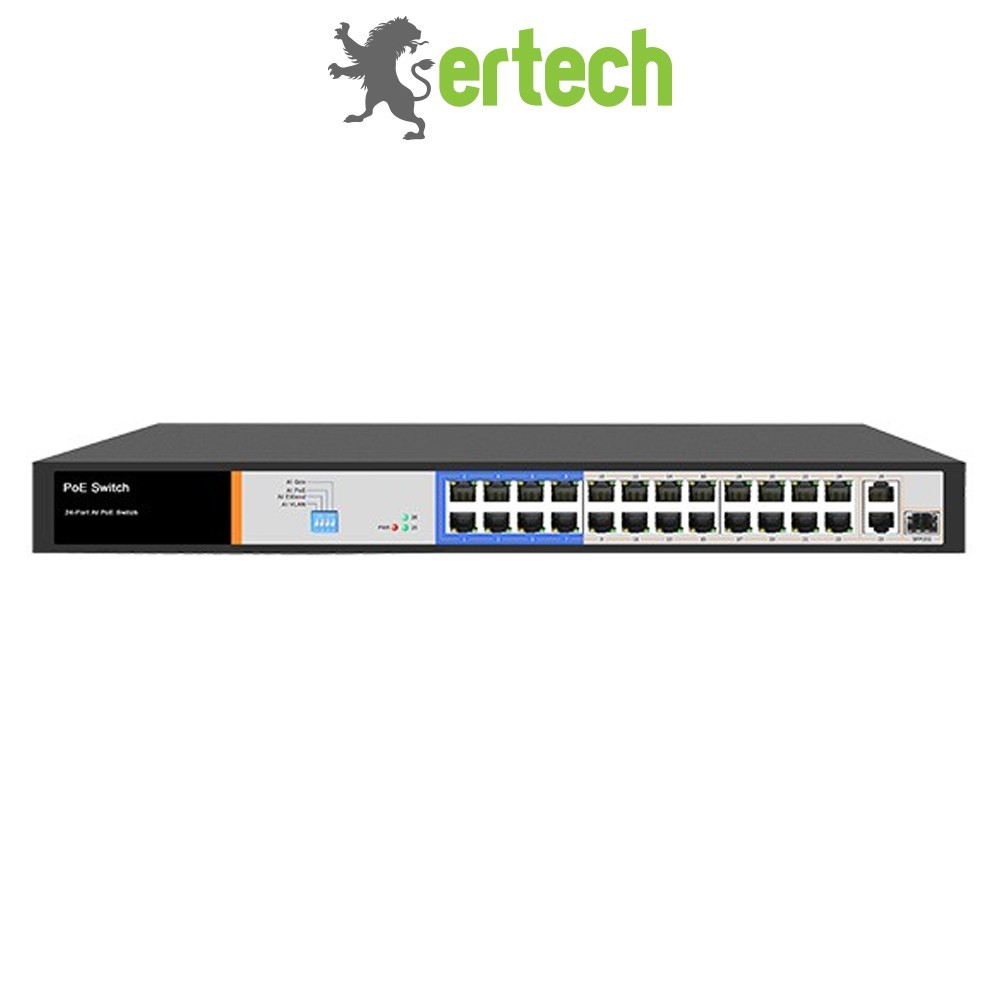

Ertech PS3024GS 24-port Gigabit Layer 2 Managed AI PoE Switch
Specification
| Network standard | IEEE 802.3i IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at |
| Port | 24个10/100/1000Mbps RJ45 port
2 gigabit SFP 1 Console |
|
Protocol standard |
IEEE 802.3:Ethernet Media Access Control (MAC) Protocol IEEE 802.3i:10BASE-T Ethernet IEEE 802.3u:100BASE-TX Fast Ethernet IEEE 802.3ab:1000BASE-T Gigabit Ethernet IEEE 802.3z:1000BASE-X Gigabit Ethernet (fiber) IEEE 802.3ad:Standard method for performing link aggregation IEEE 802.3x:flow control IEEE 802.1p:LAN Layer 2 QoS/Cos protocol for traffic priority (multicast filtering) IEEE 802.1q:VLAN IEEE 802.1d:STP Spanning tree IEEE 802.1s:MSTP Spanning tree IEEE 802.1w:RSTP Spanning tree IEEE 802.3af IEEE 802.3at |
|
Shortcut function |
One key AI VLAN
One key AI Extend (1-8 port 250meters PoE distance) One key AI PoE One key AI Q0S (Video priority) |
| DHCP | Support DHCP Snooping |
|
VLAN |
Support 4K VLAN
Support 802.1Q VLAN、MAC VLAN ,IP VLAN Voice VLAN |
|
MAC address table |
Comply the IEEE 802.1d standard
Support MAC address learning and aging automatically Support static, dynamic, filter address table |
|
Safety |
Password protection
Support based on the port number, IP address, MAC address restrictions on user access Support HTTPS、SSL V3、TLS V1、SSH V1/V2 Support IP-MAC-PORT ternary binding Support ARP protection, IP source protection, DoS protection Support DHCP Snooping、DHCP attack protection Support 802.1X certificated、AAA Support port security, port isolation Support CPU protection |
|
PoE management |
Support PoE power limit
Support PoE chip status view Support setting PoE port priority Support setting PoE power supply time period |
| Access control (ACL) | Support L2 (Layer 2) ~ L4 (Layer 4) packet filtering
Support port mirroring, port redirection, flow rate limiting, QoS re-marking |
| Quality of Service (QoS) | Support 8 port queue
Support port priority, 802.1p priority, DSCP priority Support SP、WFQ、WRR、Priority scheduling algorithm |
|
Spanning Tree |
Support STP(IEEE 802.1d)，RSTP(IEEE 802.1w) and MSTP(IEEE 802.1s) protocol
Support loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering |
|
Multicast |
Support IGMP v1/v2 Snooping
Support fast leave mechanism Support multicast VLAN Supports multicast filtering, packet statistics, and unknown multicast discards. |
|
Storm suppression |
Support multicast suppression
Support broadcast suppression Support unknown unicast suppression |
|
Link aggregation |
Support static aggregation
Support dynamic aggregation Support IP, MAC, and hybrid load balancing modes Supports up to 32 aggregation groups |
| IPv6 | Support IPv6 Ping、IPv6 Tracert、IPv6 Telnet
Support IPv6 SSH 、IPv6 SSL |
|
Management and maintenance |
Support WEB network management (HTTP, HTTPS, SSL V3)
Support CLI (Telnet, SSH V1/V2, local serial port) Support SNMP V1/V2/V3 Support LLDP、RMON Support ARP protection, IP source protection, DoS protection Support CPU monitoring, memory monitoring Support system log, grading warning Support Ping, Tracert detection, cable detection |
