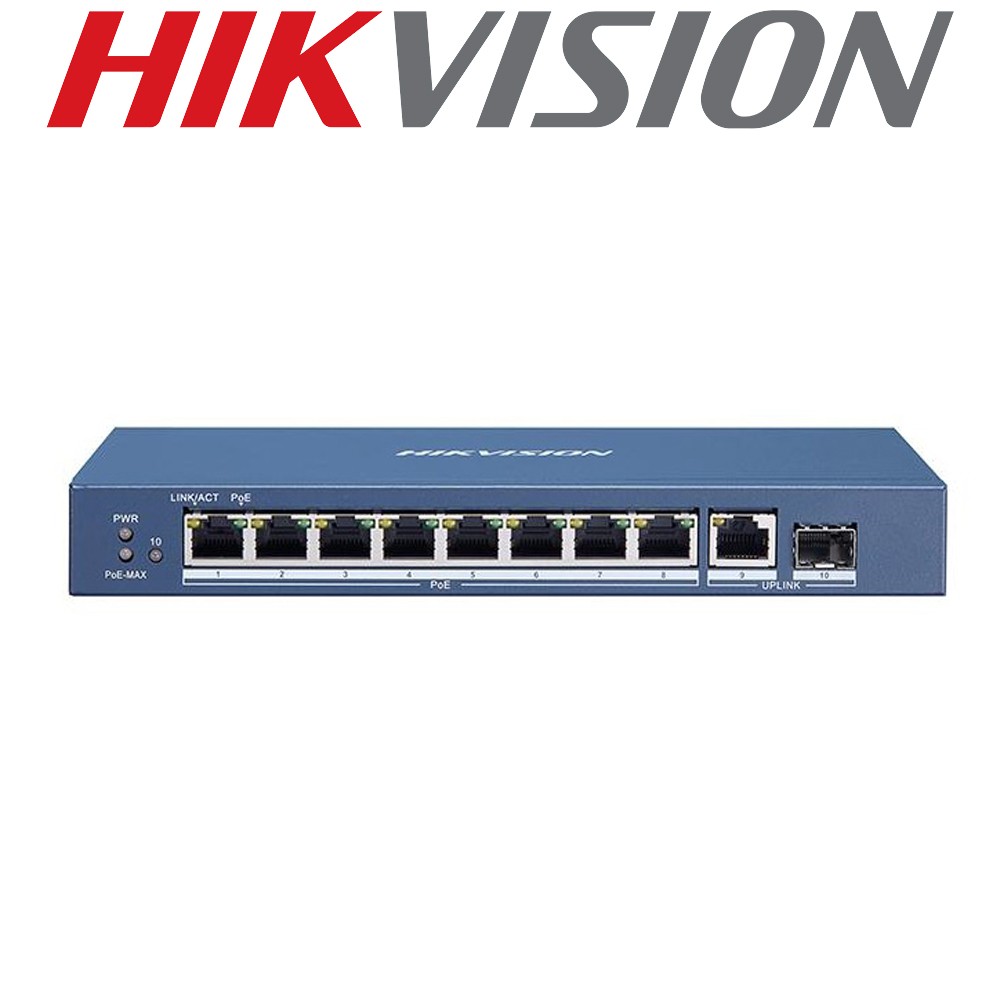

Hikvision DS-3E0510HP-E 8 Port Gigabit Unmanaged PoE Network Switch

Overview
DS-3E0510HP-E switches are layer 2 Hi-PoE switches, providing advanced PoE power supply technology and Gigabit networks design on the basis of highperformance access to ensure stable data upload. The switches support Hi-PoE, long range, port isolation, and PoE watchdog function.

• • 6 × gigabit PoE ports, 2 × gigabit Hi-PoE ports, 1 × gigabit RJ45 port, and 1 × gigabit fiber optical port.

• • IEEE 802.3at/af/bt standard for Hi-PoE ports (Max. 90 W PoE output).

• • IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).

• • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard.

• • 6 KV surge protection for PoE ports.

• • Up to 300 m long-range transmission.

• • PoE watchdog to auto detect and restart the cameras that do not respond.

• • Port isolation to improve network security.

• • Gigabit network access design.

• • Wire-speed forwarding.

• • Store-and-forward switching.

• • Solid high-strength metal shell.

• • Reliable fan-free design.

• Dimensions: 217.6 mm × 108.55 mm × 27.8mm
